* On-chip bias resistance : R1=4.7kΩ, R2=4.7kΩ.
* Small-sized package : SPA.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1523/2SC3917] ( ) : 2SA1523 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit
2SC3917
Sanyo Semicon Device
41.28 KB
Pnp/npn epitaxial planar silicon transistors.

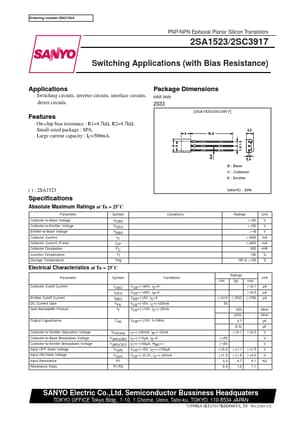

Ordering number:EN2163A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1523/2SC3917 Switching Applications (with Bias Resistance) Applications .
