2SC3916

PNP/NPN Epitaxial Planar Silicon Transistors

2SC3916 Features

* On-chip bias resistance : R1=10kΩ, R2=10kΩ.

* Small-sized package : SPA.

* Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1522/2SC3916] ( ) : 2SA1522 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitte

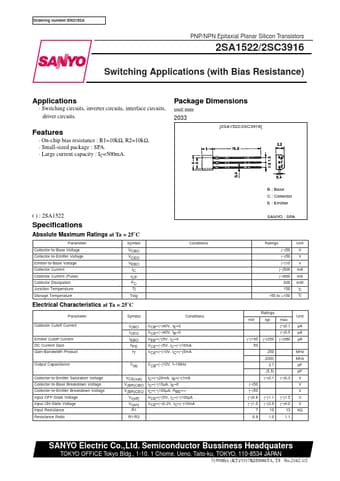

2SC3916 Datasheet (41.38 KB)

Preview of 2SC3916 PDF

Datasheet Details

Part number:

2SC3916

Manufacturer:

Sanyo Semicon Device

File Size:

41.38 KB

Description:

Pnp/npn epitaxial planar silicon transistors.
Ordering number:EN2162A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1522/2SC3916 Switching Applications (with Bias Resistance) Applications
.
