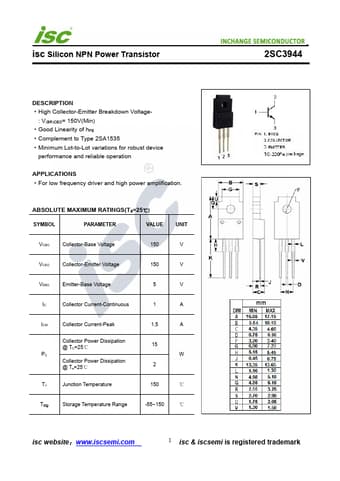

2SC3944 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC3944

Manufacturer:

INCHANGE

File Size:

211.67kb

Download:

📄 Datasheet

Description:

Npn transistor.

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min)

Good Linearity of hFE

Complement to Type 2

2SC3944 Application

• Applications
• For low frequency driver and high power amplification. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
