2SC3902 - NPN Transistor

2SC3902 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC3902 .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 160V(Min). Large Current Capacity. Complement to Type 2SA1507. 100% avalanche t.

2SC3902 Applications

* Color TV audio output, converters, inverters. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 180 V VCEO Collector-Emitter Voltage 160 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 1.5 A ICM Collector Current-Peak

📥 Download Datasheet

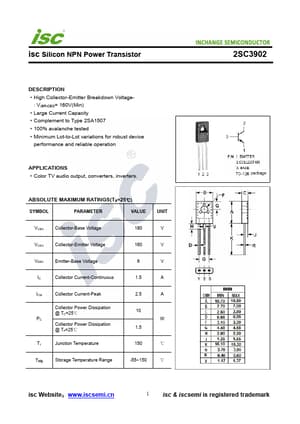

Preview of 2SC3902 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC3902
Manufacturer
INCHANGE
File Size
183.38 KB
Datasheet
2SC3902-INCHANGE.pdf
Description
NPN Transistor
