2SC4064 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC4064

Manufacturer:

SavantIC

File Size:

271.95kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220F package
  • Complement to type 2SA1567
  • Low collector saturation voltage APPLICATIONS
  • For

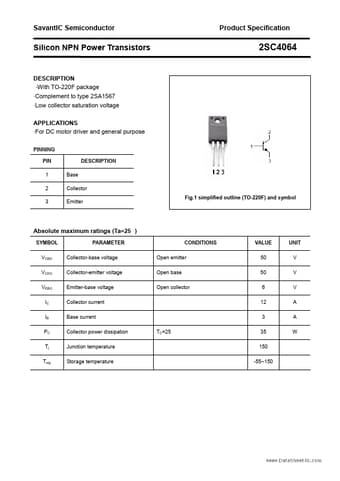

  • Datasheet Preview: 2SC4064 📥 Download PDF (271.95kb)
    Page 2 of 2SC4064 Page 3 of 2SC4064

    2SC4064 Application

    • Applications
    • For DC motor driver and general purpose PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220F) and symbol
