2SD1407 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

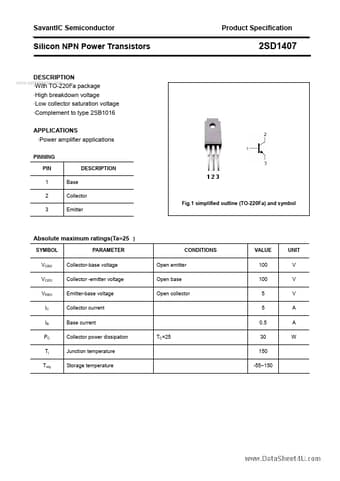

Datasheet preview – 2SD1407

Datasheet Details

Part number 2SD1407
Manufacturer SavantIC
File Size 179.63 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD1407 Datasheet
Additional preview pages of the 2SD1407 datasheet.

Product details

Description

With TO-220Fa package High breakdown voltage Low collector saturation voltage Complement to type 2SB1016 APPLICATIONS Power amplifier applications PINNING PIN 1 2 3 Base Collector Fig.1 simplified outline (TO-220Fa) and symbol Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector -emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temper
