2SD1910 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

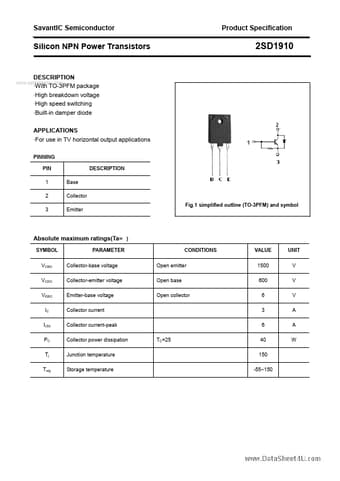

Datasheet preview – 2SD1910

Datasheet Details

Part number 2SD1910
Manufacturer SavantIC
File Size 141.06 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD1910 Datasheet
Additional preview pages of the 2SD1910 datasheet.

Product details

Description

With TO-3PFM package High breakdown voltage High speed switching Built-in damper diode APPLICATIONS For use in TV horizontal output applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PFM) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipation Junction t
