2SD1911 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD1911

Manufacturer:

SavantIC

File Size:

140.87kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PFM package

High breakdown voltage

High speed switching

Built-in damper diode APPLICATIO

2SD1911 Application

• Applications

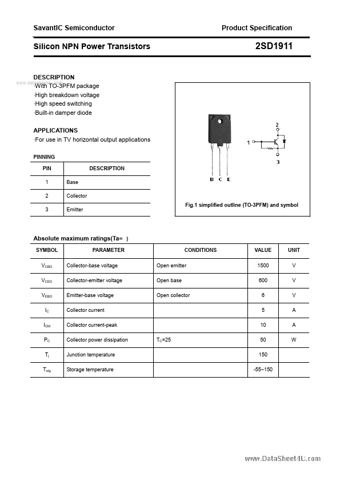

• For use in TV horizontal output applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PFM) and s
