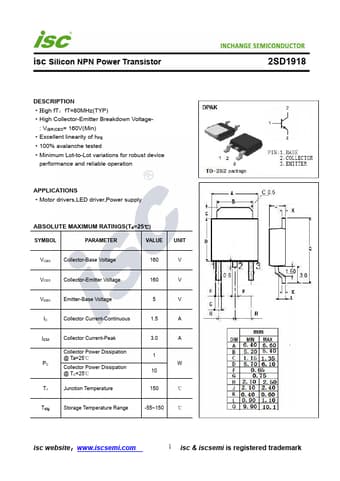

2SD1918 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD1918

Manufacturer:

Inchange Semiconductor

File Size:

189.98kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

High fT：fT=80MHz(TYP)

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 160V(Min)

Excellent linearity

2SD1918 Application

• Applications
• Motor drivers,LED driver,Power supply ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base
