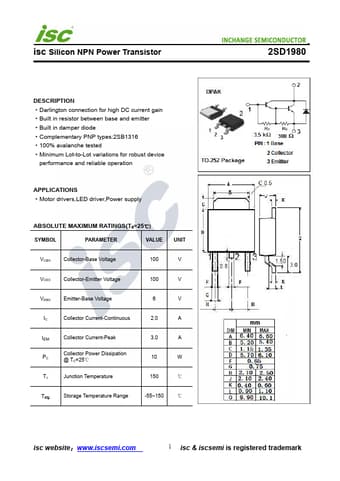

2SD1980 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD1980

Manufacturer:

Inchange Semiconductor

File Size:

216.42kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

Darlington connection for high DC current gain

Built in resistor between base and emitter

Built in damper

2SD1980 Application

• Applications
• Motor drivers,LED driver,Power supply ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base
