2SD1983 - NPN Transistor

Product Overview

📥 Download Datasheet

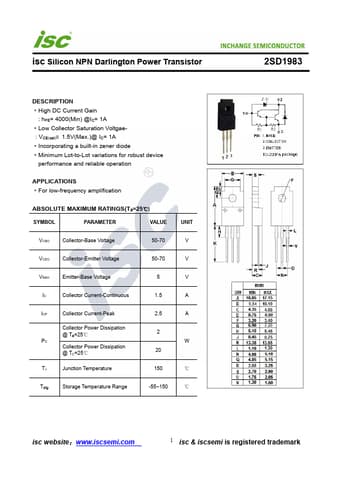

Datasheet preview – 2SD1983

Datasheet Details

Part number 2SD1983
Manufacturer INCHANGE
File Size 184.95 KB
Description NPN Transistor
Datasheet download datasheet 2SD1983 Datasheet
Additional preview pages of the 2SD1983 datasheet.

Product details

Description

High DC Current Gain : hFE= 4000(Min) @IC= 1A Low Collector Saturation Voltgae- : VCE(sat)= 1.5V(Max.)@ IC= 1A Incorporating a built-in zener diode Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS For low-frequency amplification ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50-70 V VCEO Collector-Emitter Voltage 50-70 V VEBO Emitter-Base Voltage 5 V IC Collector
