2SD2251 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SD2251

Manufacturer:

SavantIC

File Size:

218.22kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

With TO-3PML package

High speed

High breakdown voltage

High reliability

Built-in damper

2SD2251 Application

• Applications

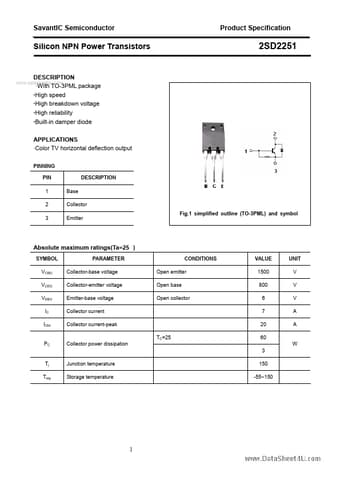

• Color TV horizontal deflection output PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol D
