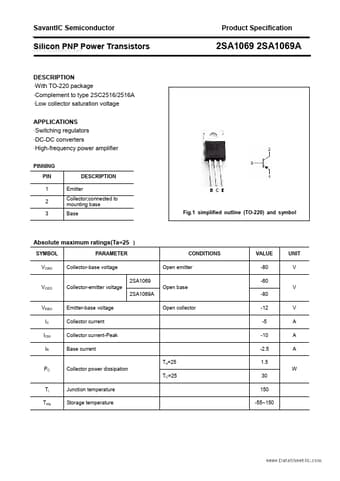

Datasheet preview – A1069

Datasheet Details

Part number A1069
Manufacturer SavantIC
File Size 130.55 KB
Description 2SA1069
Datasheet download datasheet A1069 Datasheet
Additional preview pages of the A1069 datasheet.

Product details

Description

With TO-220 package Complement to type 2SC2516/2516A Low collector saturation voltage APPLICATIONS Switching regulators DC-DC converters High-frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO PARAMETER Collector-base voltage 2SA1069 VCEO Collector-emitter voltage 2SA1069A VEBO IC ICM IB Emitter-base voltage Collector curr
