BD244C, BD244 Datasheet - SavantIC

BD244C Silicon PNP Power Transistors

*With TO-220C package *Complement to type BD243/A/B/C APPLICATIONS *For medium power linear and switching applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER CONDITIONS BD244 VCBO Collec.

BD244-SavantIC.pdf

This datasheet PDF includes multiple part numbers: BD244C, BD244. Please refer to the document for exact specifications by model.

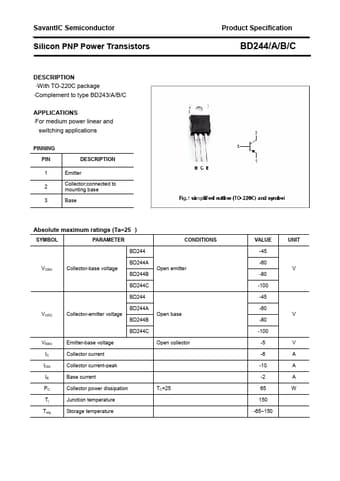

BD244C Datasheet Preview Page 2 BD244C Datasheet Preview Page 3

Datasheet Details

Part number:

BD244C, BD244

Manufacturer:

SavantIC

File Size:

86.00 KB

Description:

Silicon pnp power transistors.

Note:

This datasheet PDF includes multiple part numbers: BD244C, BD244.
Please refer to the document for exact specifications by model.
