C1309 Datasheet - SavantIC

C1309 Silicon NPN Transistor

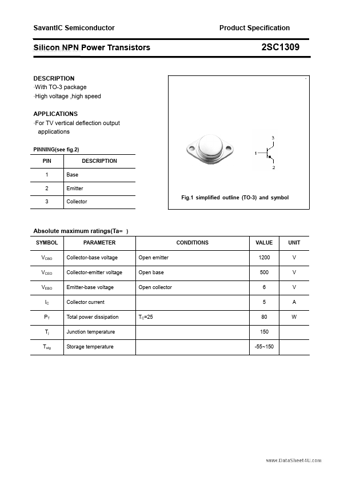

*With TO-3 package *High voltage ,high speed APPLICATIONS *For TV vertical deflection output applications PINNING(see fig.2) PIN DESCRIPTION 1 Base 2 Emitter 3 Collector Product Specification 2SC1309 * Fig.1 simplified outline (TO-3) and symbol Absolute maximum ratings(Ta= ) SYMBO.

C1309-SavantIC.pdf

Preview of C1309 PDF
C1309 Datasheet Preview Page 2 C1309 Datasheet Preview Page 3

Datasheet Details

Part number:

C1309

Manufacturer:

SavantIC

File Size:

133.13 KB

Description:

Silicon npn transistor.
