D2125 Datasheet, 2sd2125, SavantIC

PDF File Details

Part number:

D2125

Manufacturer:

SavantIC

File Size:

320.52kb

Download:

📄 Datasheet

Description:

2sd2125.

  • With TO-3P(H)IS package
  • Built-in damper diode
  • High voltage ,high speed
  • Low saturation voltage APP

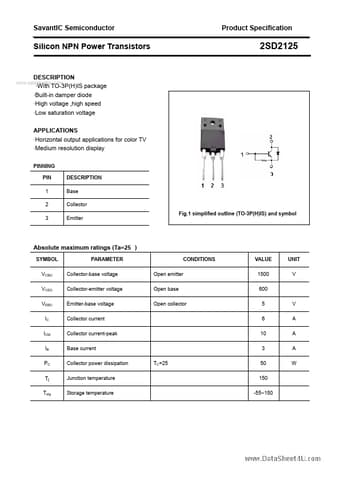

  • Datasheet Preview: D2125 📥 Download PDF (320.52kb)
    Page 2 of D2125 Page 3 of D2125

    D2125 Application

    • Applications
    • Horizontal output applications for color TV
    • Medium resolution display PINNING PIN 1 2 3 DESCRIPTION Base Collector Em
