TIP32 Datasheet, transistors equivalent, SavantIC

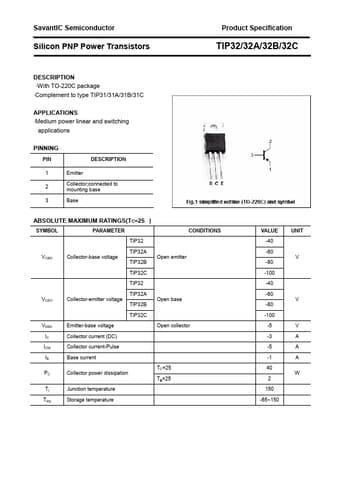

PDF File Details

Part number:

TIP32

Manufacturer:

SavantIC

File Size:

125.06kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistors.

With TO-220C package

Complement to type TIP31/31A/31B/31C APPLICATIONS

Medium power linear and switching

TIP32 Application

• Applications
• Medium power linear and switching applications PINNING PIN DESCRIPTION 1 Emitter 2 Collector;connected to mounting base
