TIP30B - Silicon PNP Power Transistors

Product Overview

SavantIC

Datasheet Details

Part number	TIP30B
Manufacturer	SavantIC
File Size	99.61 KB
Description	Silicon PNP Power Transistors
Datasheet	TIP30B Datasheet
Note	This datasheet PDF includes multiple part numbers: TIP30B, TIP30. Please refer to the document for exact specifications by model.

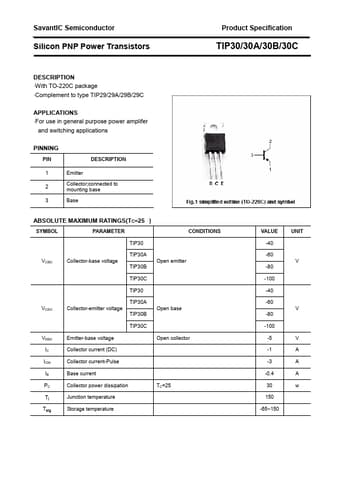

Additional preview pages of the TIP30B datasheet.

Product details

Description

With TO-220C package Complement to type TIP29/29A/29B/29C APPLICATIONS For use in general purpose power amplifer and switching applications PINNING PIN DESCRIPTION 1 Emitter 2 Collector;connected to mounting base 3 Base ABSOLUTE MAXIMUM RATINGS(Tc=25 ) SYMBOL PARAMETER CONDITIONS TIP30 VCBO Collector-base voltage TIP30A TIP30B Open emitter TIP30C TIP30 VCEO Collector-emitter voltage TIP30A TIP30B Open base TIP30C VEBO IC ICM IB PC Tj Tstg Emitter-base volt
