* TO-92 Low Collector-Emitter Saturation Voltage Low Transition Frequency G H CLASSIFICATION OF hFE Product-Rank 2SA1515-P 2SA1515-Q 2SA1515-R Range 82~180 120~270 180~390 K J A B D Emitter Collector
* Base REF. A B C D E F G H J K E C F Millimeter Min. Max. 4.40 4.70 4.30 4.
2SA1515
SeCoS
101.52 KB
Pnp transistor.
2SA1515
Elektronische Bauelemente
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free

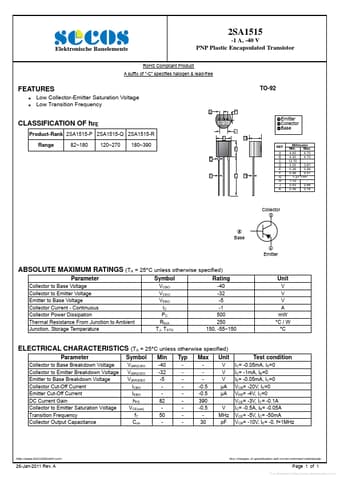

-1 A, -40 V PNP Plastic Encapsulated Transist.
