2SC5344

NPN Plastic-Encapsulate Transistor

2SC5344 Features

* Audio power amplifier application High hFE=100~320 Complementary to 2SA1981 A L 3 SOT-23 3 Top View 1 2 C B 1 2 K E D CLASSIFICATION OF hFE(1) Product-Rank Range Marking Code 2SC5344-O 100~200 FAO 2SC5344-Y 160~320 FAY F G Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.89 1.15 1.78 2.04

2SC5344 Datasheet (314.24 KB)

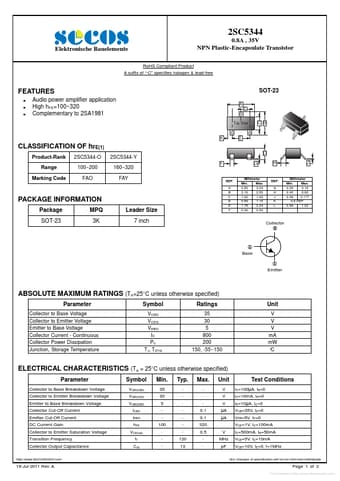

Preview of 2SC5344 PDF

Datasheet Details

Part number:

2SC5344

Manufacturer:

SeCoS

File Size:

314.24 KB

Description:

Npn plastic-encapsulate transistor.
2SC5344 Elektronische Bauelemente 0.8A , 35V NPN Plastic-Encapsulate Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free.
