DTC143ZCA - NPN Digital Transistors

Product Overview

SeCoS

📥 Download Datasheet

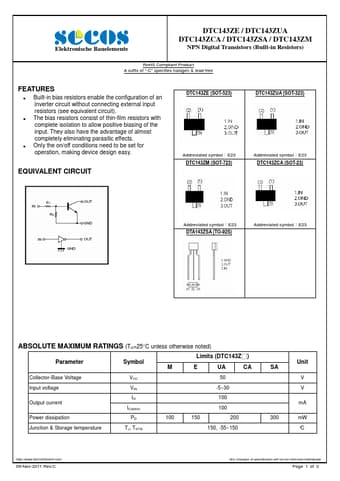

DTC143ZCA NPN Digital Transistors by SeCoS - Datasheet Preview — Datasheet preview – DTC143ZCA

Datasheet Details

Part number	DTC143ZCA
Manufacturer	SeCoS
File Size	348.17 KB
Description	NPN Digital Transistors
Datasheet	DTC143ZCA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC143ZCA, DTC143ZE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTC143ZCA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy.
