S5U1118

1A Positive Low Dropout Fixed-Mode Regulator

S5U1118 Features

* 1.4V Max. Dropout Voltage At Full Load Current

* Fixed Output Voltage 1.5V,1.8V,2.5V,3.3V,5.0V,9.0V,12V

* Output Current Limiting

* Good Noise Rejection

* Fast Transient Response

* Built-in Thermal Shutdown

* Enable Function REF. A b L4 c L1 E Millimeter REF. Min. Ma

S5U1118 General Description

The S5U1118 is a low dropout positive fixed-mode regulator with min. of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as highspeed bus termination and low current 3.3V logic supply.S5U1118 is also well suited .

S5U1118 Datasheet (520.39 KB)

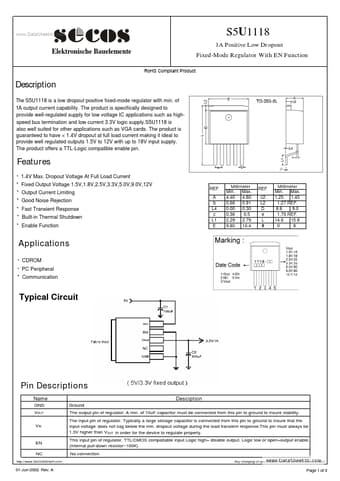

Preview of S5U1118 PDF

Datasheet Details

Part number:

S5U1118

Manufacturer:

SeCoS

File Size:

520.39 KB

Description:

1a positive low dropout fixed-mode regulator.
www.DataSheet4U.com S5U1118 1A Positive Low Dropout Fixed-Mode Regulator With EN Function RoHS Compliant Product Elektronische Bauelemente Descript.
