S5U2178 - CMOS Low Dropout Voltage Regulator

SeCoS

📥 Download Datasheet

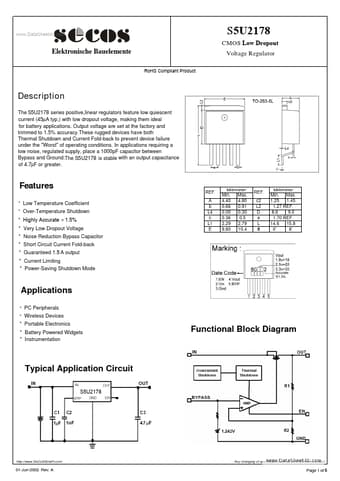

S5U2178 Datasheet Preview — Preview of S5U2178 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S5U2178
Manufacturer: SeCoS
File Size: 1.14 MB
Datasheet: S5U2178_SeCoS.pdf
Description: CMOS Low Dropout Voltage Regulator

S5U2178 Product details

Description

The S5U2178 series positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.

Features

Low Temperature Coefficient.
Over-Temperature Shutdown REF. A b L4 c L1 E.
Highly Accurate ± 1.5%.
Very Low Dropout Voltage.
Noise Reduction Bypass Capacitor.
Short Circuit Current Fold-back.
Guaranteed 1.5 A output.
Current Limiting.
Power-Saving Shutdown Mode Millimeter Min. Max. 4.40 4.80 0.66 0.91 0.00 0.30 B 0.36 0.5 2.29 2.79 9.80 10.4 REF. c2 L2 D e L Millimeter Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚.
