S5U2596M

3A PWM Step-Down DC/DC Converter

SeCoS

S5U2596M Features

* Uses Readily Available Standard Inductors REF. A b L4 c L1 E

* Operating Voltage Can Be Up To 22V

* Thermal Shutdown And Current Limit Protection

* 3.3V,5V,12V and adjustable Output Versions

* TTL Shutdown Capability

* Built-in TTL On/Off Control

* Guaranteed 3A Outpu

S5U2596M General Description

The S5U2596M series of regulators are monolithic integrated circuit that provides all active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V,5V,12V and an adjustable.

S5U2596M Datasheet (1.29 MB)

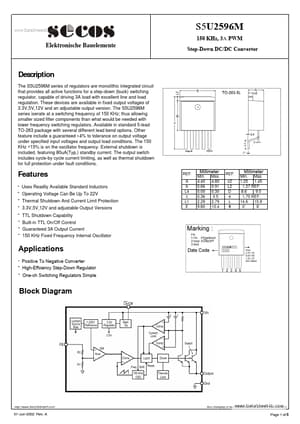

S5U2596M Datasheet Preview — Preview of S5U2596M PDF

Datasheet Details

Part number:

S5U2596M

Manufacturer:

SeCoS

File Size:

1.29 MB

Description:

3a pwm step-down dc/dc converter.
