S5U2189 - 1.55A CMOS Low Dropout Voltage Regulator

SeCoS

📥 Download Datasheet

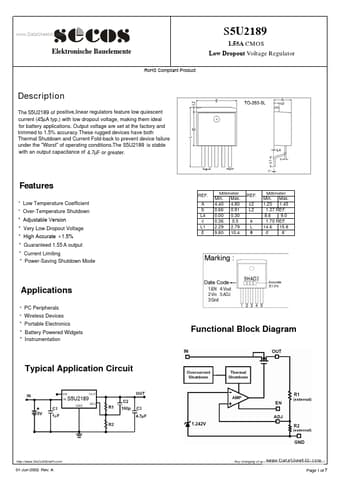

S5U2189 Datasheet Preview — Preview of S5U2189 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S5U2189
Manufacturer: SeCoS
File Size: 1.21 MB
Datasheet: S5U2189_SeCoS.pdf
Description: 1.55A CMOS Low Dropout Voltage Regulator

S5U2189 Product details

Description

The S5U2189 of positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.

Features

REF.
Low Temperature Coefficient.
Over-Temperature Shutdown.
Adjustable Version.
Very Low Dropout Voltage.
High Accurate ± 1.5%.
Guaranteed 1.55 A output.
Current Limiting.
Power-Saving Shutdown Mode A b L4 c L1 E Millimeter Min. Max. 4.40 4.80 0.66 0.91 0.00 0.30 0.36 0.5 2.29 2.79 9.80 10.4 REF. c2 L2 e L Millimeter Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚.
