S5U2187 - 750mA CMOS Positive Voltage Regulator

SeCoS

📥 Download Datasheet

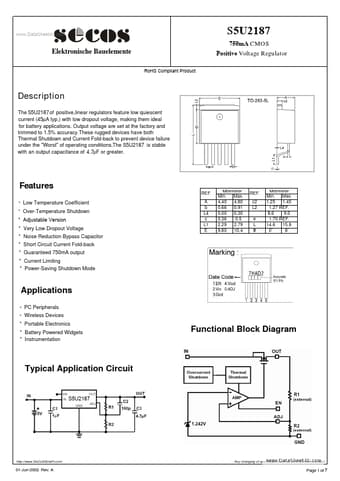

S5U2187 Datasheet Preview — Preview of S5U2187 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S5U2187
Manufacturer: SeCoS
File Size: 1.45 MB
Datasheet: S5U2187_SeCoS.pdf
Description: 750mA CMOS Positive Voltage Regulator

S5U2187 Product details

Description

The S5U2187 of positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.

Features

REF.
Low Temperature Coefficient.
Over-Temperature Shutdown.
Adjustable Version.
Very Low Dropout Voltage.
Noise Reduction Bypass Capacitor.
Short Circuit Current Fold-back.
Guaranteed 750mA output.
Current Limiting.
Power-Saving Shutdown Mode A b L4 c L1 E Millimeter REF. Min. Max. 4.40 4.80 c2 0.66 0.91 L2 0.00 0.30 0.36 0.5 B D e 2.29 2.79 L 9.80 10.4 Millimeter Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚.
