S5U1284 - 4A Ultra Low Dropout Positive Adjustable or Fixed-Mode Regulator

SeCoS

📥 Download Datasheet

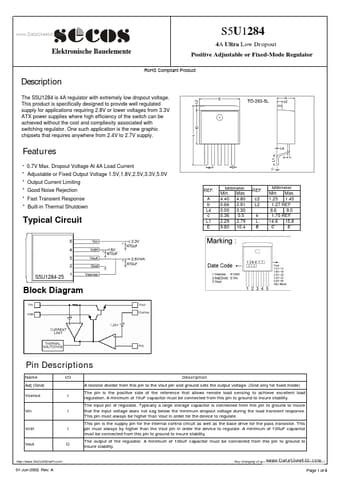

S5U1284 Datasheet Preview — Preview of S5U1284 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S5U1284
Manufacturer: SeCoS
File Size: 620.77 KB
Datasheet: S5U1284_SeCoS.pdf
Description: 4A Ultra Low Dropout Positive Adjustable or Fixed-Mode Regulator

S5U1284 Product details

Description

The S5U1284 is 4A regulator with extremely low dropout voltage.

Features

0.7V Max. Dropout Voltage At 4A Load Current.
Adjustable or Fixed Output Voltage 1.5V,1.8V,2.5V,3.3V,5.0V.
Output Current Limiting.
Good Noise Rejection.
Fast Transient Response.
Built-in Thermal Shutdown REF. A b L4 c L1 E Millimeter Min. Max. 4.40 4.80 0.66 0.91 0.00 0.30 B 0.36 0.5 2.29 2.79 9.80 10.4 REF. c2 L2 D e L Millimeter Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚ Typical Circuit S5U1284-25 Block Diagram Pin.
