SD08CL, SD03CL Datasheet - SeCoS

SD08CL 250W Plastic Encapsulate ESD Protection Diodes

The Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The Series mee.

SD08CL Features

* IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Protects one I/O line (bidirectional) Low clamping voltage MECHANICAL DATA Case：SOD-323 Flammability Rating: UL 94V-0 High temperature soldering guaranted:260℃/10s MARKING Part Number Marking Part Number Marking SD03CL

SD03CL-SeCoS.pdf

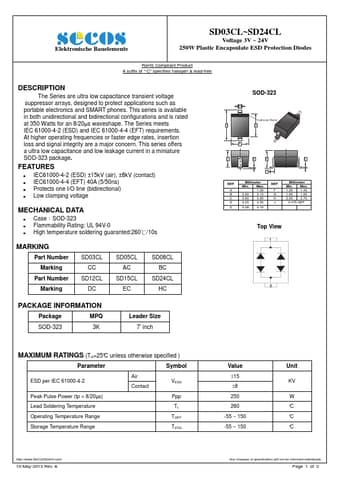

SD08CL Datasheet Preview — This datasheet PDF includes multiple part numbers: SD08CL, SD03CL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD08CL, SD03CL

Manufacturer:

SeCoS

File Size:

549.31 KB

Description:

250w plastic encapsulate esd protection diodes.

Note:

This datasheet PDF includes multiple part numbers: SD08CL, SD03CL.
Please refer to the document for exact specifications by model.
