SD03CL-C

350W Plastic Encapsulate ESD Protection Diodes

SD03CL-C Features

* Transient protection for high-speed data lines

* IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)

* IEC61000-4-4 (EFT) 40A (5/50ns)

* Protects one I/O line (bidirectional)

* Low clamping voltage

* Low leakage current

* Response time

SD03CL-C General Description

This series are ultra-low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in bidirectional configurations and is rated at 350 Watts for an 8/20μs wave shape. This series meets IEC 61000-4-2 (ESD.

SD03CL-C Datasheet (570.40 KB)

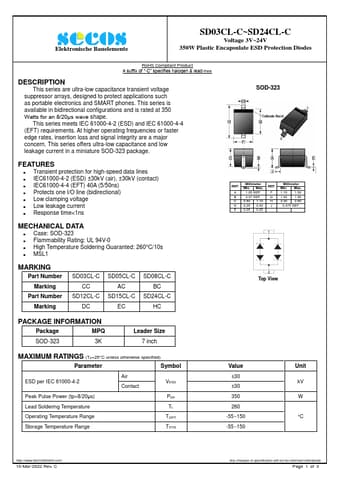

Preview of SD03CL-C PDF

Datasheet Details

Part number:

SD03CL-C

Manufacturer:

SeCoS

File Size:

570.40 KB

Description:

350w plastic encapsulate esd protection diodes.
Elektronische Bauelemente SD03CL-C~SD24CL-C Voltage 3V~24V 350W Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of “-C” sp.
