SD03CL

250W Plastic Encapsulate ESD Protection Diodes

SD03CL Features

* IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) Protects one I/O line (bidirectional) Low clamping voltage MECHANICAL DATA Case:SOD-323 Flammability Rating: UL 94V-0 High temperature soldering guaranted:260℃/10s MARKING Part Number Marking Part Number Marking SD03CL

SD03CL General Description

The Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The Series mee.

SD03CL Datasheet (549.31 KB)

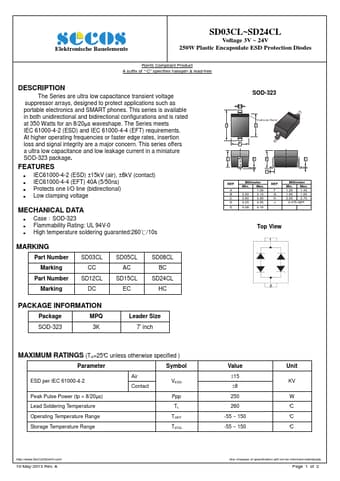

Preview of SD03CL PDF

Datasheet Details

Part number:

SD03CL

Manufacturer:

SeCoS

File Size:

549.31 KB

Description:

250w plastic encapsulate esd protection diodes.
Elektronische Bauelemente SD03CL~SD24CL Voltage 3V ~ 24V 250W Plastic Encapsulate ESD Protection Diodes RoHS Compliant Product A suffix of “-C” spec.
