SD03C

Low capacitance bidirectional TVS Diodes

SD03C Features

* Peak Power Dissipation

* 300 W (8 x 20 us Waveform)

* Replacement for MLV (0805)

* Protects One Power or I/O Port

* Low Clamping Voltage

* Low Leakage

* Response Time is < 1 ns

* Available in Multiple Voltages Ranging From 3V to36V

SD03C Datasheet (390.48 KB)

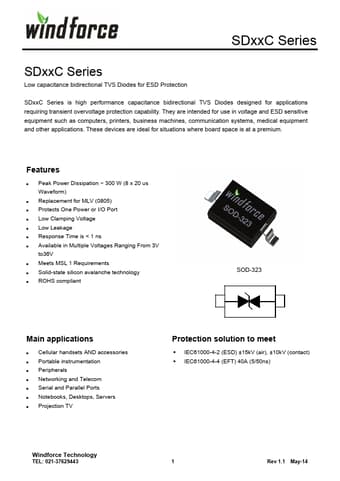

Preview of SD03C PDF

Datasheet Details

Part number:

SD03C

Manufacturer:

Windforce

File Size:

390.48 KB

Description:

Low capacitance bidirectional tvs diodes.
SDxxC Series SDxxC Series Low capacitance bidirectional TVS Diodes for ESD Protection SDxxC Series is high performance capacitance bidirectional TVS.
