SMF501C 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers

📥 Download Datasheet Datasheet Preview Page 1

Description

Elektronische Bauelemente SMF501C ~ SMF507C 50 V ~ 1000 V 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers RoHS Compliant Product A suffix of .

📥 Download Datasheet

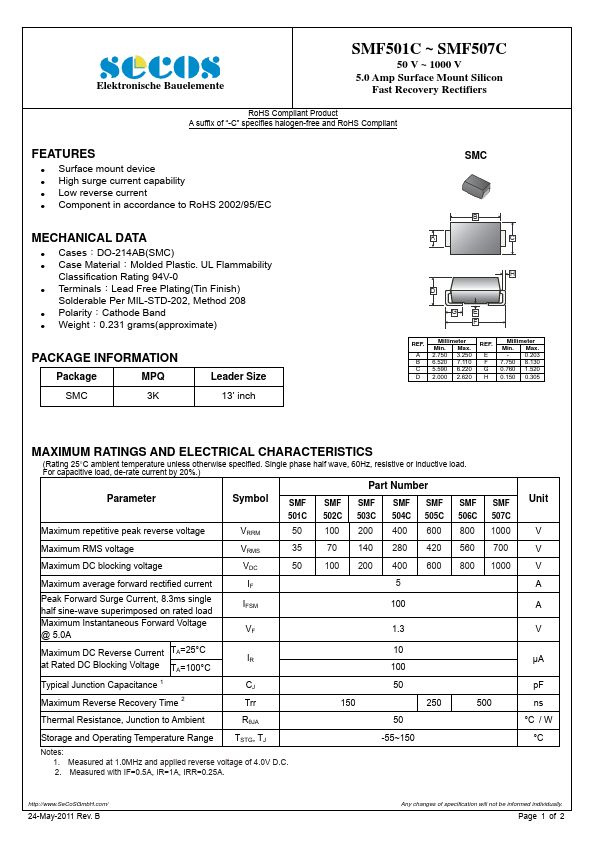

Preview of SMF501C PDF

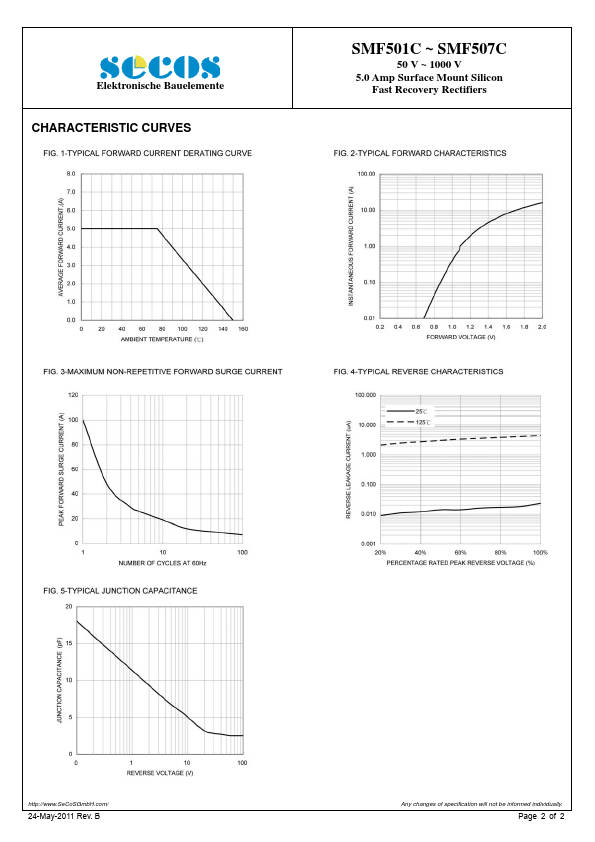

datasheet Preview Page 2

Datasheet Specifications

Part number
SMF501C
Manufacturer
SeCoS
File Size
228.62 KB
Datasheet
SMF501C-SeCoS.pdf
Description
5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers

Features

* Surface mount device
* High surge current capability
* Low reverse current
* Component in accordance to RoHS 2002/95/EC MECHANICAL DATA
* Cases：DO-214AB(SMC)
* Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0
* Terminals：Lead Free Plating(Tin F
