A1036 PNP Silicon Transistor

A1036 Description

2SA1036 Elektronische Bauelemente -0.5A, -40V PNP Silicon General Purpose Transistor RoHS Compliant Product A suffix of “-C” specifies halogen and le.

A1036 Features

* IC Max. = -500 mA Low VCE(sat). Ideal for low-voltage operation. 3 SOT-23 A L 3 CLASSIFICATION OF hFE Product-Rank Range Marking 2SA1036-P 82~180 HP 2SA1036-Q 120~270 HQ 2SA1036-R K 1 Top View 2 C B 1 E 2 180~390 HR F D G REF. A B C D E F Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.8

📥 Download Datasheet

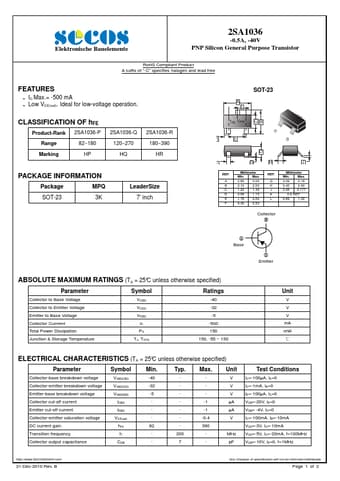

Preview of A1036 PDF
datasheet Preview Page 2

Datasheet Details

Part number
A1036
Manufacturer
Secos
File Size
771.20 KB
Datasheet
A1036-Secos.pdf
Description
PNP Silicon Transistor
