S-5813A

(S-5813A / S-5814A) CMOS TEMPERATURE SENSOR IC

S-5813A Features

* Temperature accuracy

* Linear output voltage

* Nonlinearity

* Wide power supply voltage operation

* Low current consumption

* Built-in operational amplifier

* Output voltage referred to VSS

* Lead-free (Sn 100%), halogen-free S-5813A

S-5813A General Description

1 VSS GND pin 2 VDD Power supply pin 3 VOUT Output voltage pin 4 NC
*1 No connection
*1. The NC pin is electrically open. The NC pin can be connected to the VDD pin or the VSS pin. 4 Seiko Instruments Inc. Rev.4.1_00 CMOS TEMPERATURE SENSOR IC S-5813A/5814A Series
* Abso.

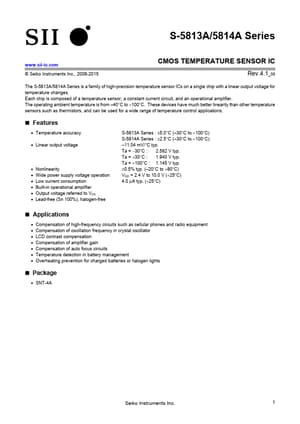

S-5813A Datasheet (378.03 KB)
