2N2894ACSM - PNP GENERAL PURPOSE TRANSISTOR

2N2894ACSM Description

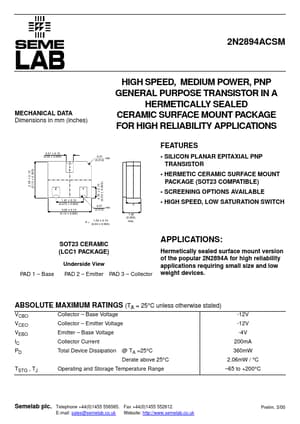

2N2894ACSM MECHANICAL DATA Dimensions in mm (inches) HIGH SPEED, MEDIUM POWER, PNP GENERAL PURPOSE TRANSISTOR IN A HERMETICALLY SEALED CERAMIC SURFA.

2N2894ACSM Features

* 0.51 ± 0.10 (0.02 ± 0.004) 0.31 rad. (0.012)
* SILICON PLANAR EPITAXIAL PNP TRANSISTOR
* HERMETIC CERAMIC SURFACE MOUNT PACKAGE (SOT23 COMPATIBLE)
* SCREENING OPTIONS AVAILABLE A 1.40 (0.055) max. 2.54 ± 0.13 (0.10 ± 0.005) 3 2 1 1.91 ± 0.10 (0.075 ± 0.004) 3.05 ± 0.1
