2N2894DCSM - PNP GENERAL PURPOSE TRANSISTOR

2N2894DCSM Description

2N2894DCSM MECHANICAL DATA Dimensions in mm (inches) DUAL HIGH SPEED, MEDIUM POWER, PNP GENERAL PURPOSE TRANSISTOR IN A HERMETICALLY SEALED CERAMIC .

2N2894DCSM Features

* 4.32 ± 0.13 (0.170 ± 0.005) 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 0.64 ± 0.08 (0.025 ± 0.003) 1.40 ± 0.15 (0.055 ± 0.006) 2.54 ± 0.13 (0.10 ± 0.005) 2 1 3 4 5
* SILICON PLANAR EPITAXIAL DUAL PNP TRANSISTOR
* HERMETIC CERAMIC SURFACE MOUNT PACKAGE
* SCR

2N2894DCSM Applications

* Hermetically sealed dual surface mount version of the popular 2N2894 for high reliability applications requiring small size and low weight devices. ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VCBO VCEO VEBO IC PD PD TSTG , TJ Collector
* Base Voltage Collector
* Em

📥 Download Datasheet

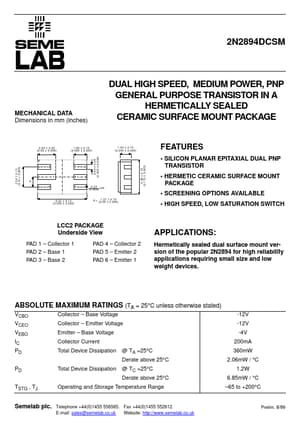

Preview of 2N2894DCSM PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N2894DCSM
Manufacturer
Seme LAB
File Size
16.53 KB
Datasheet
2N2894DCSM_SemeLAB.pdf
Description
PNP GENERAL PURPOSE TRANSISTOR
