BCY72, BCY70 - GENERAL PURPOSE PNP SILICON TRANSISTOR

The BCY72 by Seme LAB is a GENERAL PURPOSE PNP SILICON TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the BCY72 GENERAL PURPOSE PNP SILICON TRANSISTOR datasheet (Seme LAB).

Datasheet Details

Part number BCY72, BCY70
Manufacturer Seme LAB
File Size 38.97 KB
Description GENERAL PURPOSE PNP SILICON TRANSISTOR
Datasheet download datasheet BCY70-SemeLAB.pdf
Note This datasheet PDF includes multiple part numbers: BCY72, BCY70.
Please refer to the document for exact specifications by model.

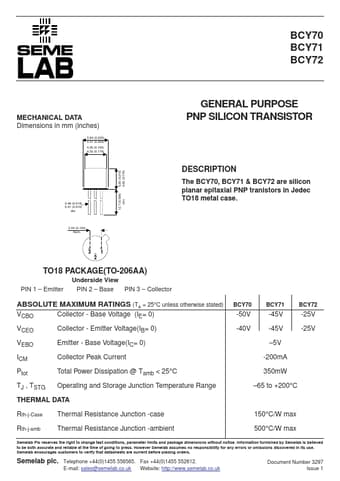

Additional preview pages of the BCY72 datasheet.

BCY72 Product details

Description

The BCY70, BCY71 & BCY72 are silicon planar epitaxial PNP tranistors in Jedec TO18 metal case. Emitter PIN 2 Base PIN 3 Collector ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VCBO Collector - Base Voltage (IE= 0) VCEO Collector - Emitter Voltage(IB= 0) VEBO Emitter - Base Voltage(IC= 0) ICM Collector Peak Current Ptot Total Power Dissipation @ Tamb < 25°C TJ , TSTG Operating and Storage Junc
