CV7673 Bipolar PNP Device

CV7673 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package. Bipolar PNP Device. VCEO = 40V 0.48 (0.019) 0.41 (0.016) dia. IC = 0.6A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 3 2 1 2.54 (0.100) Nom. TO18 (TO206AA) PINOUTS 1 Emitter 2 Base 3 Collector Parameter VC.

CV7673 Datasheet (10.37 KB)

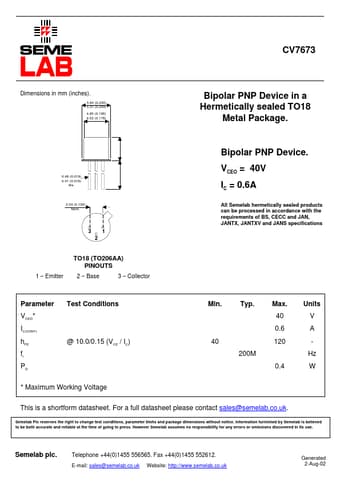

CV7673 Datasheet Preview — Preview of CV7673 PDF

Datasheet Details

Part number:

CV7673

Manufacturer:

Seme LAB

File Size:

10.37 KB

Description:

Bipolar pnp device.
