CV7767 Datasheet - Semelab Plc

CV7767 Bipolar NPN Device

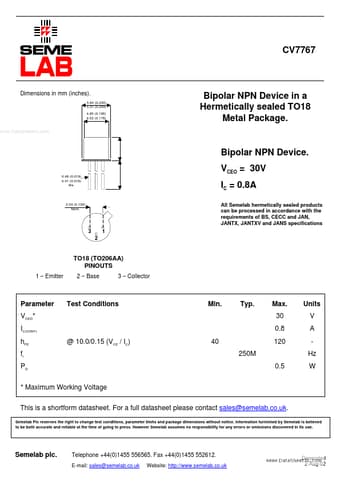

CV7767 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar NPN Device in a Hermetically sealed TO18 Metal Package. www.DataSheet4U.com Bipolar NPN Device. VCEO = 30V 0.48 (0.019) 0.41 (0.016) dia. IC = 0.8A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 3 2 1 2.54 (0.100) Nom. TO18 (TO206AA) PINOUTS 1 Emitter 2 Base 3 Co.

CV7767_SemelabPlc.pdf

CV7767 Datasheet Preview — Preview of CV7767 PDF

Datasheet Details

Part number:

CV7767

Manufacturer:

Semelab Plc

File Size:

38.76 KB

Description:

Bipolar npn device.
