CV7763 Bipolar NPN Device

CV7763 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar NPN Device in a Hermetically sealed TO39 Metal Package. Bipolar NPN Device. www.DataSheet4U.com 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. VCEO = 30V 5.08 (0.200) typ. IC = 0.8A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of.

CV7763 Datasheet (40.34 KB)

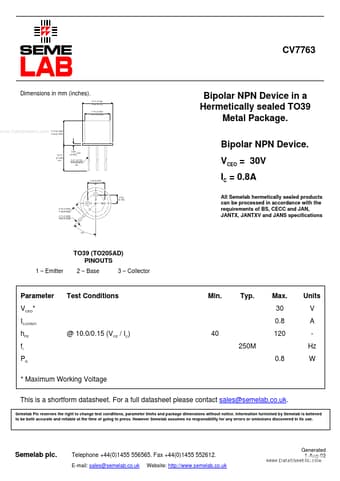

CV7763 Datasheet Preview — Preview of CV7763 PDF

Datasheet Details

Part number:

CV7763

Manufacturer:

Semelab Plc

File Size:

40.34 KB

Description:

Bipolar npn device.
