D1260UK METAL GATE RF SILICON FET

TetraFET D1260UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA D (2 pls) C E B 1 2 3 A G 5 4 GOLD METALLISED MULTI-PURPOSE SILICON DMOS RF FET 40W 12.5V 175MHz SINGLE ENDED PIN 1 PIN 3 PIN 5 H I FM K DT SOURCE (COMMON) PIN 2 SOURCE (COMMON) PIN 4 DRAIN JN GATE SOURCE (COMMON) DIM mm A 6.35 DIA B 3.17 DIA C 18.41 D 5.46 E 5.21 F 7.62 G 21.59 H 3.94 I 12.70 J 0.13 K 24.76 M 2.59 N 4.06 Tol. 0.13 0.13 0.25 0.13 0.13 MAX 0.38 .

D1260UK Features

* SIMPLIFIED AMPLIFIER DESIGN

* SUITABLE FOR BROAD BAND APPLICATIONS

* LOW Crss

* SIMPLE BIAS CIRCUITS

* LOW NOISE

* HIGH GAIN

* 10 dB MINIMUM APPLICATIONS

* HF/VHF/UHF COMMUNICATIONS from 1 MHz to 175 MHz ABSOLUTE MAXIMUM RATINGS (Tca

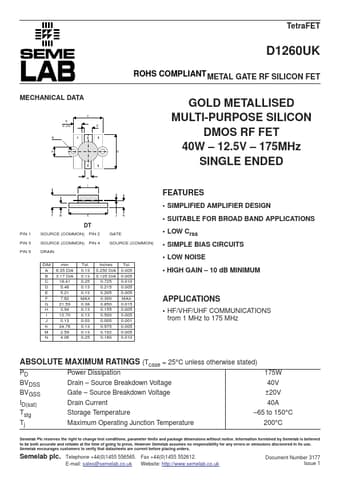

D1260UK Datasheet (30.41 KB)

D1260UK Datasheet Preview — Preview of D1260UK PDF

Datasheet Details

Part number:

D1260UK

Manufacturer:

Seme LAB

File Size:

30.41 KB

Description:

Metal gate rf silicon fet.
