HCD65R600S 650V N-Channel Super Junction MOSFET

HCD65R600S Description

HCD65R600S_HCU65R600S June 2015 HCD65R600S / HCU65R600S 650V N-Channel Super Junction MOSFET .

HCD65R600S Features

* ‰ Originative New Design ‰ Superior Avalanche Rugged Technology ‰ Robust Gate Oxide Technology ‰ Very Low Intrinsic Capacitances ‰ Excellent Switching Characteristics ‰ Unrivalled Gate Charge : 16 nC (Typ. ) ‰ Extended Safe Operating Area ‰ Lower RDS(ON) ȍ 7S #9GS=10V ‰ 100% Avalanche Test

📥 Download Datasheet

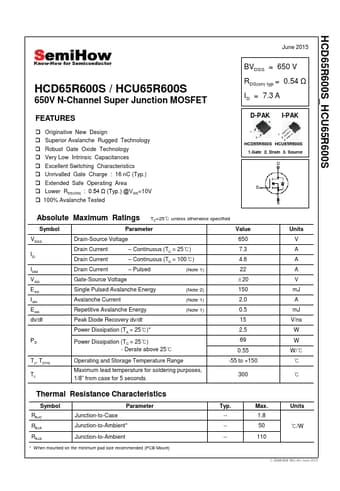

Preview of HCD65R600S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCD65R600S
Manufacturer
SemiHow
File Size
263.62 KB
Datasheet
HCD65R600S-SemiHow.pdf
Description
650V N-Channel Super Junction MOSFET
