SDW80S600

Fast Soft Recovery Rectifier Diode

SDW80S600 Features

* Plastic material meets UL94V-0

* Glass passivated chips

* Very short recovery time

* Extremely low switching loss

* Soft recovery behavior

* High ruggedness type

* IFAVM = 80A VRRM = 600V = 65ns trr TO- 247AD General Description The SDW80S600 FRD has been designed for appli

SDW80S600 General Description

The SDW80S600 FRD has been designed for applications requiring low forward voltage drop and soft recovery characteristics. Typical applications are output rectification for SMPS, UPS, Welding and freewheeling in inverter, chopper and converter. 1 2 1.Cathode 2. Anode DataSheet4U.com DataShee Abs.

SDW80S600 Datasheet (806.44 KB)

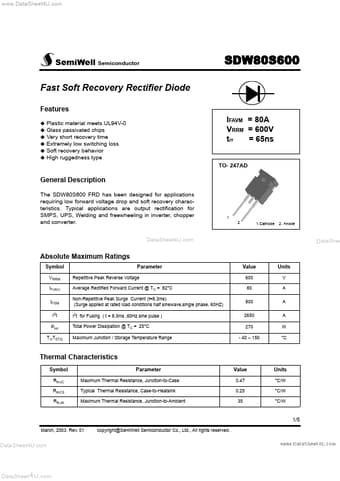

Preview of SDW80S600 PDF

Datasheet Details

Part number:

SDW80S600

Manufacturer:

SemiWell Semiconductor

File Size:

806.44 KB

Description:

Fast soft recovery rectifier diode.
