SDW81F1DY

LED

Seoul Semiconductor

SDW81F1DY Features

* Size 13.5mm

* 13.5mm

* Power dissipation 4.7 ~ 9.2W

* Wide CCT range with CRI70~90

* Forward VF typ 36V

* Maximum Current 230mA

* MacAdam 3-step binning

* Uniformed Shadow

* Excellent Thermal management

* RoHS compliant Ke

SDW81F1DY General Description

* The ZC series are LED arrays which provide High Flux and High Efficacy.

* Especially it is designed for easy assembly of lighting fixtures by eliminating reflow soldering process.

* It‘s thermal management is better than other power LED solutions with wide Metal area.
<.

SDW81F1DY Datasheet (565.43 KB)

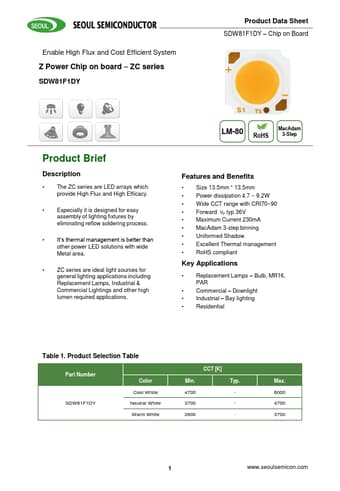

SDW81F1DY Datasheet Preview — Preview of SDW81F1DY PDF

Datasheet Details

Part number:

SDW81F1DY

Manufacturer:

Seoul Semiconductor

File Size:

565.43 KB

Description:

Led.
Enable High Flux and Cost Efficient System Z Power Chip on board

* ZC series SDW81F1DY Product Data Sheet SDW81F1DY

* Chip on Board .
