SDW81F1B

LED

Seoul Semiconductor

SDW81F1B Features

* Size 13.5mm

* 13.5mm

* Power dissipation 4.5 ~ 11.8W

* Wide CCT range with CRI70~80

* Forward VF typ 8.8V

* Maximum Current 1.15A

* MacAdam 3-step binning

* Uniformed Shadow

* Excellent Thermal management

* RoHS compliant

SDW81F1B General Description

* The ZC series are LED arrays which provide High Flux and High Efficacy.

* It is especially designed for easy assembly of lighting fixtures by eliminating reflow soldering process.

* It‘s thermal management is better than other power LED solutions with wide Metal area.
<.

SDW81F1B Datasheet (584.69 KB)

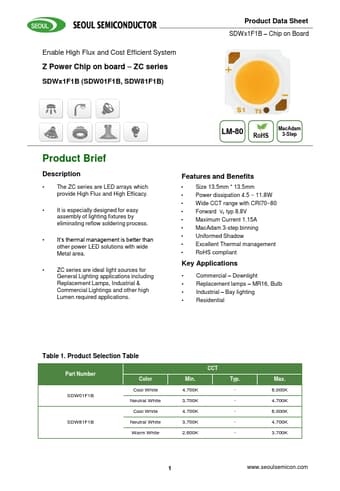

SDW81F1B Datasheet Preview — Preview of SDW81F1B PDF

Datasheet Details

Part number:

SDW81F1B

Manufacturer:

Seoul Semiconductor

File Size:

584.69 KB

Description:

Led.
Enable High Flux and Cost Efficient System Z Power Chip on board

* ZC series SDWx1F1B (SDW01F1B, SDW81F1B) Product Data Sheet SDWx1F1B
