SDW81F1C Datasheet, Led, Seoul Semiconductor

SDW81F1C Features

  • Led
  • Size 13.5mm
  • 13.5mm
  • Power dissipation 6.3 ~ 18.4W
  • Wide CCT range with CRI70~90
  • Forward VF 34.8V
  • Maximum Current 460mA

PDF File Details

Part number:

SDW81F1C

Manufacturer:

Seoul Semiconductor

File Size:

615.25kb

Download:

📄 Datasheet

Description:

Led. The ZC series are LED arrays which provide High Flux and High Efficacy. It is especially designed for easy assemb

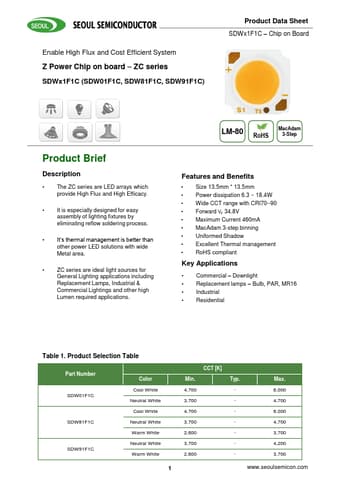

Datasheet Preview: SDW81F1C 📥 Download PDF (615.25kb)
Page 2 of SDW81F1C Page 3 of SDW81F1C

SDW81F1C Application

  • Applications including Replacement Lamps, Industrial & Commercial Lightings and other high Lumen required applications. LM-80 RoHS MacAdam 3-Step
