STP6A60

Bi-Directional Triode Thyristor

STP6A60 Features

* Repetitive Peak Off-State Voltage : 600V www.DataSheet4U.com

* R.M.S On-State Current ( IT(RMS)= 6 A )

* High Commutation dv/dt

* Non-isolated Type TO-220 2.T2 ▼ ▲ ○ 3.Gate 1.T1 ○ General Description This device is suitable for AC switching application, phase control applicat

STP6A60 General Description

This device is suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay. 1 2 3 Absolute Maximum Ratings Symbol VDRM IT(RMS) ITSM I2 t PGM PG(AV) IGM VGM TJ TSTG ( TJ = 25°C unless otherwise sp.

STP6A60 Datasheet (729.68 KB)

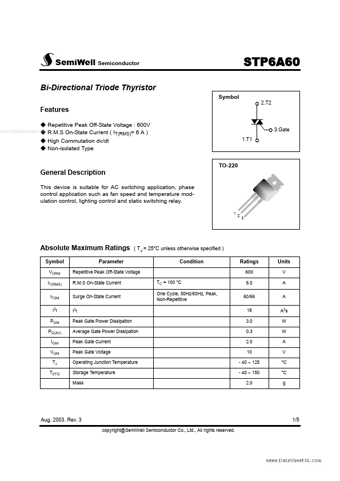

Preview of STP6A60 PDF

Datasheet Details

Part number:

STP6A60

Manufacturer:

SemiWell Semiconductor

File Size:

729.68 KB

Description:

Bi-directional triode thyristor.
