STP8A60 - Bi-Directional Triode Thyristor

SemiWell Semiconductor

The STP8A60 by SemiWell Semiconductor is a Bi-Directional Triode Thyristor. Below is the official datasheet preview.

📥 Download Datasheet

STP8A60 Bi-Directional Triode Thyristor by SemiWell Semiconductor - Datasheet Preview — Official preview page of the **STP8A60** Bi-Directional Triode Thyristor datasheet (SemiWell Semiconductor).

Datasheet Details

Part number	STP8A60
Manufacturer	SemiWell Semiconductor
File Size	717.71 KB
Description	Bi-Directional Triode Thyristor
Datasheet	STP8A60_SemiWellSemiconductor.pdf

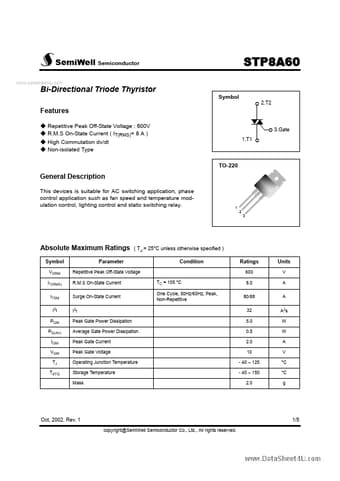

Additional preview pages of the STP8A60 datasheet.

STP8A60 Product details

Description

This devices is suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Features

Repetitive Peak Off-State Voltage : 600V.
R. M. S On-State Current ( IT(RMS)= 8 A ).
High Commutation dv/dt.
Non-isolated Type TO-220 ▼ ▲ ○ 3.Gate 1.T1 ○ General.
