TPSMCJ170A - Transient Voltage Suppressors

This page provides the datasheet information for the TPSMCJ170A, a member of the TPSMCJ11A Transient Voltage Suppressors family.

Datasheet Summary

Features

  • Low profile package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements TPSMCJ SERIES Transient Voltage Suppressors DO-214AB(SMC) Uni-directionnal Bi-directionnal.

📥 Download Datasheet

Datasheet preview – TPSMCJ170A

Datasheet Details

Part number TPSMCJ170A
Manufacturer SemiWell
File Size 286.09 KB
Description Transient Voltage Suppressors
Datasheet download datasheet TPSMCJ170A Datasheet

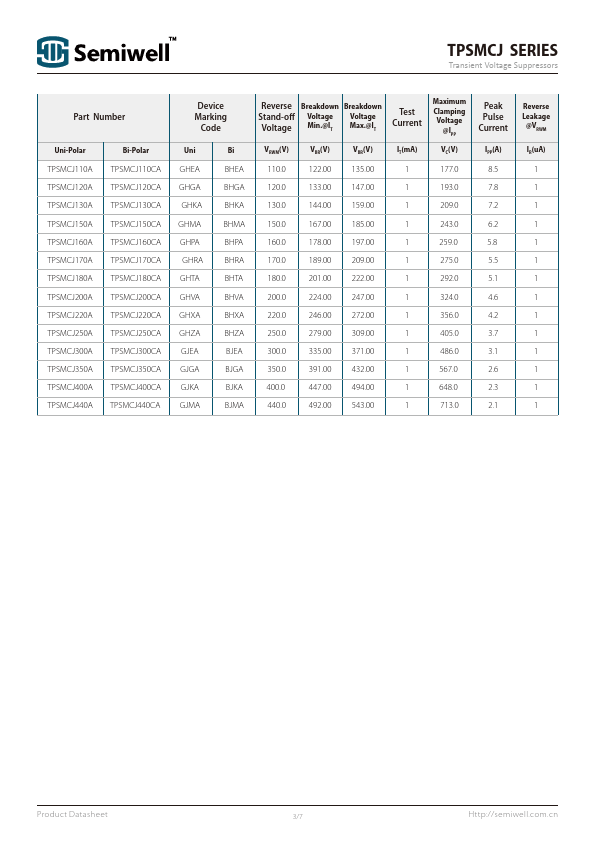

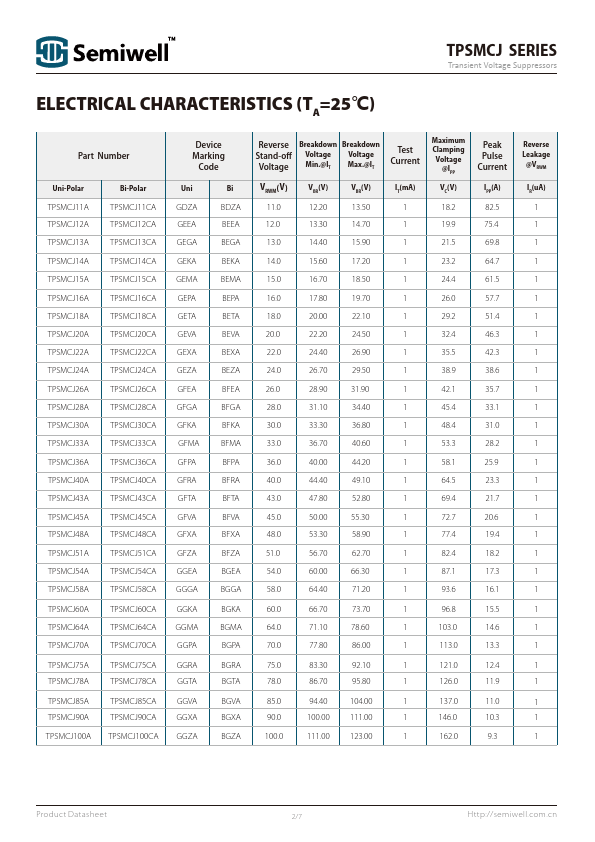

Additional preview pages of the TPSMCJ170A datasheet.

📁 Similar Datasheet

  • TPSMC10 - AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • TPSMC10 - Transient Voltage Suppressors (Vishay)
  • TPSMC10 - AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • TPSMC100A - TVS Diodes (Littelfuse)
  • TPSMC100CA - TVS Diodes (Littelfuse)
  • TPSMC10A - AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • TPSMC10A - Transient Voltage Suppressors (Vishay)
  • TPSMC10A - AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • TPSMC11 - AUTOMOTIVE SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)
  • TPSMC11 - Transient Voltage Suppressors (Vishay)
Other Datasheets by SemiWell

Full PDF Text Transcription

Click to expand full text

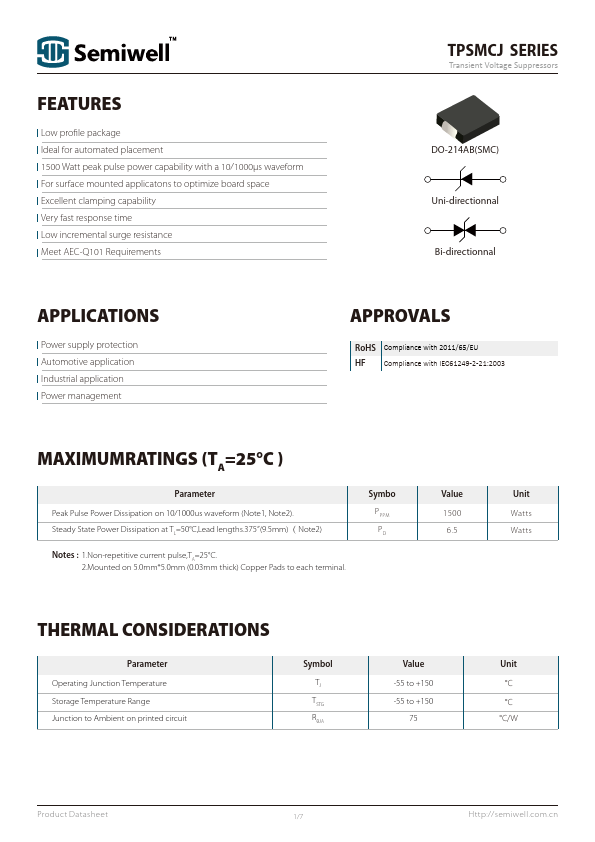

FEATURES Low profile package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements TPSMCJ SERIES Transient Voltage Suppressors DO-214AB(SMC) Uni-directionnal Bi-directionnal APPLICATIONS Power supply protection Automotive application Industrial application Power management APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUMRATINGS (TA=25°C ) Parameter Peak Pulse Power Dissipation on 10/1000us waveform (Note1, Note2). Steady State Power Dissipation at TL=50°C,Lead lengths.375”(9.5mm)č Note2) Notes : 1.Non-repetitive current pulse,TA=25°C. 2.
