2N3499 - NPN Transistor

2N3499 Description

Data Sheet No.2N3499 Type 2N3499 Geometry 5620 Polarity NPN Qual Level: JAN - JANTXV .

2N3499 Applications

* Housed in TO-39 case. Also available in chip form using the 5620 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/366 which Semicoa meets in all cases. Generic Part Number: 2N3499 REF: MIL-PRF-19500/366
* TO-39 Maximum Ratings TC = 25 C unless other

📥 Download Datasheet

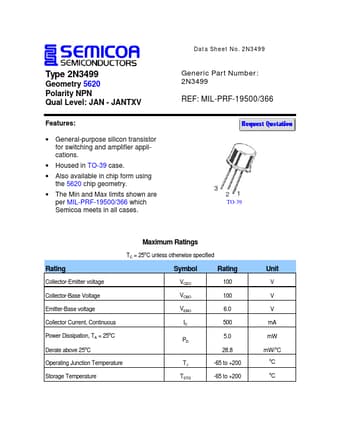

Preview of 2N3499 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N3499
Manufacturer
Semicoa Semiconductor
File Size
46.89 KB
Datasheet
2N3499_SemicoaSemiconductor.pdf
Description
NPN Transistor
